C501
Creator C501 BMW & OBDII Code Reader
Product Introduction
The Creator C501 is a new diagnostic scanner for BMW and OBDII vehicles. It features a 2.8-inch color screen for rich display content. With built-in 4G memory, it supports sufficient data storage and multi-language options. Compact and portable, it is easy to operate. Adopting a battery-free design, it is plug-and-play. It comes with an upgrade function to update the software at any time.
Product Highlights
Compatible with BMW models from 2001 to 2024, realizing full vehicle system fault diagnosis.
Supports common BMW maintenance reset functions, including oil reset, brake pad reset, vehicle inspection reset, particulate matter detection, DPF and more.
Provides special functions such as throttle adaptation and battery registration (for models after 2006).
Product Specifications & Functions
- Display: 2.8-inch true color screen, 320 × 240 pixels
- Operating Temperature: -20 ℃ ~ 75 ℃
- Storage Temperature: -40 ℃ ~ 120 ℃
- Input Voltage: 8V ~ 24V
- Outer Dimension: 180 × 130 mm
- Weight: 0.45kg
Applicable Vehicle List
OBDII & EOBD Software
- Works on all 2001 and later OBDII compliant PETROL European vehicles
- Works on all 2004 and later OBDII compliant DIESEL European vehicles
- Works on all 1996 and later OBDII compliant US and Asian vehicles
- Easily determines the cause of the “Check Engine Light ( MIL)”
- Retrieves generic (P0, P2, P3, and U0) and manufacturer specific
(P1, P3,
and U1) codes
- Turns off Check Engine Light (MIL), clears codes and resets monitors
- Displays DTC definitions on unit screen
- Views freeze frame data
- Identifies pending codes
- Reads live PCM datastream
- Graph displays live PCM datastream
- Read I/M Readiness Status
- Displays live O2 sensor test data
- Performs modules present test
- Retrieves vehicle information (VIN, CIN and CVN)
- Supports CAN (Controller Area Network) and all other current OBD-II protocols
BMW Software description
Supports BMW between 2001 to 2025
1 Series: 1’_E81/E81/E87/E88,1’_F20/F21, 1’_F40
2 Series: 2’_F22/F23,2’_F45/F46,2’_F87,2’_F44,2’_G42,2’_U06
3 Series: 3’_Z3_E36,3’_E46,3’_E90/E91/E92/E93,
3’_F30/F31/F34/F35,3’_F80,3’_G20/G21/G28/G80
4 Series: 4’_F32/F33/F36,4’_F82/F83,4’_G22/G23/G82/G83,4’_G26
5 Series: 5’_E39,5’_E60/E61,5’_GT(F07), 5’_F10/F11/F18,5’_G38,5’_G60
6 Series: 6’_E63/E64,6’_F06/F12/F13
7 Series: 7’_E38,7’_E65/E66,7’_F01/F02/F03/F04, 7’_G11/G12,7’_G70
8 Series: 8’_F91/F92/F93, 8’_G14/G15/G16
X Series: X1_E84,X1_F48/F49,X3_E83,X5_E53,X5_70,X6_E71,
X6_E72,X3_F25,X5_F15/F85,X6_F16/F86,X4_F26,X3_F97.X3_G08,X4_F98,X4_G02,X5_F95, X5_G05,X6_F97,X6_G06,X7_G07,M12,M13,X1_U11/U12,XM_G09
Z Series: 3’/Z3_E36,Z4_E85/E86,Z4_E89,Z4_G29
I Series: I’_I01/I02,I3_I01,I8_I12/I15,I’_I20
MINI: MINI_R50/R52/R53, MINI_R55/R56/R57/R58/R59/R60, MINI_F55/F56, MINI_F65/F66/F67,
Include : Drive , Chassis and Body all system
Functions : read trouble codes, clear trouble codes, displays live data
stream and graph display and vehicle version information.
Service reset : Engine oil reset , dpf , brake reset, Microfilter, Spark plugs. Etc.
Throttle, Battery Register.
Other Information

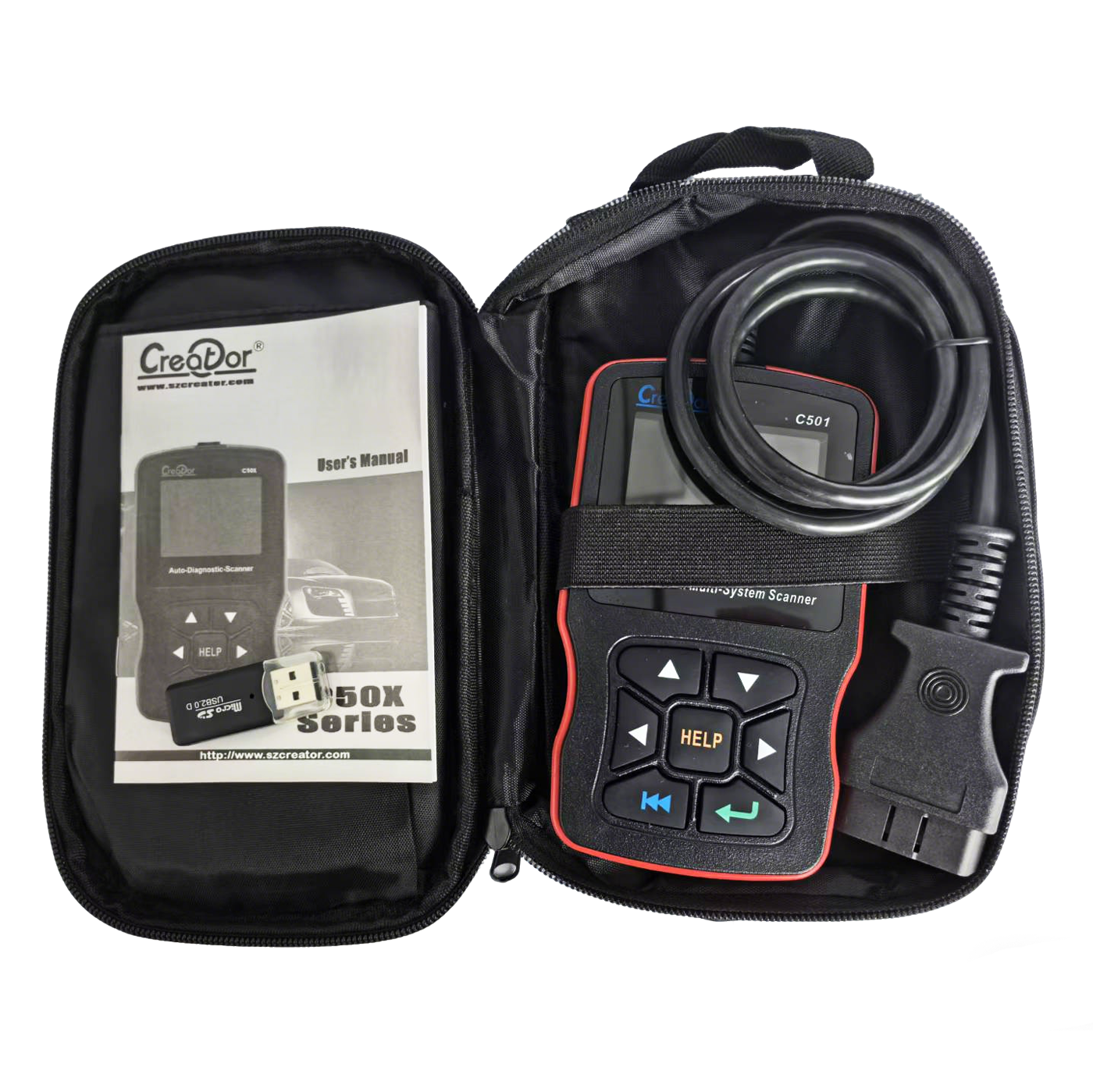

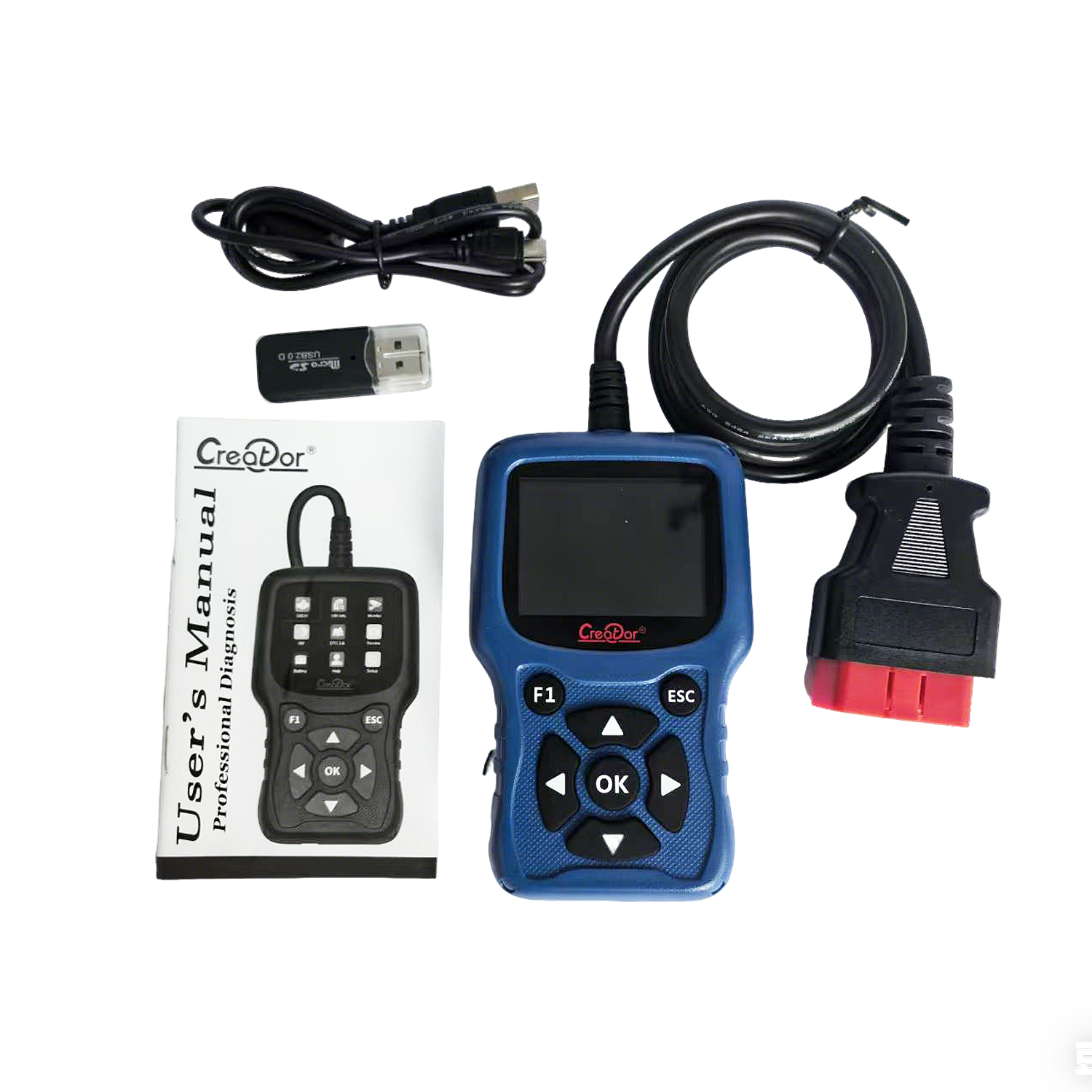

Package Contents
- Main Device × 1
- TF Card Reader × 1
- User Manual × 1

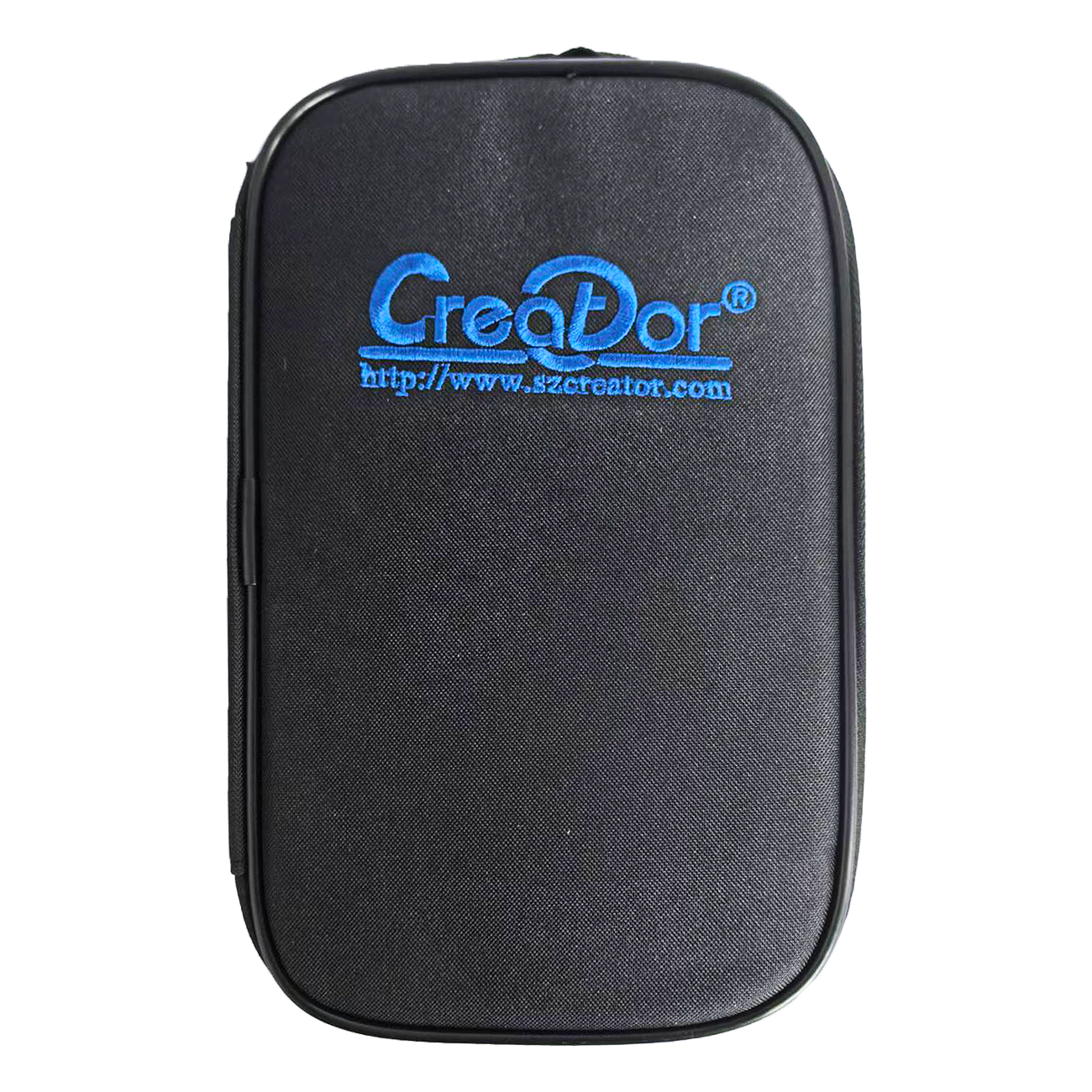

- Storage Bag × 1
